Eight Typical Valves in Air Compressors

Whether you are an air compressor sales person, or mechanical maintenance staff member, or a purchaser for your factory, you should have heard or very familiar with the following 7 famous valves in air compressors:

  1. Intake Valve
  2. Minimum Pressure Valve/MPV
  3. Safety Valve
  4. Temperature Control Valve
  5. Oil Cut Valve
  6. Check Valve
  7. Solenoid Valve
  8. Regulating Valve

01 Intake Valve (Unloader or Loading Valve)

The intake valve is the breathing port of the air compressor. The ordinary air enters the intake valve and then goes to the compressor head, where it is compressed to produce compressed gas. It can control the loading and unloading of the air compressor and the size and flow of the air pressure. It is a main component (intake control system) on the air compressor.

The working principle of the intake valve, the intake control valve is mainly composed of a valve body, a valve, a piston, a cylinder, a spring, a sealing ring, etc. It is equipped with a control block and a control solenoid valve on its side, which integrates on-off adjustment, load reduction, and dissipation. Sound, depressurization, and shutdown and vent functions. When unloading, a small part of the gas is released through the small hole in the valve to balance the intake air volume of the small hole of the intake control valve, so that the pressure in the separation oil tank is maintained at 0.2-0.3MPa, and the normal air compressor oil is maintained. cycle. The opening and closing action of the intake control valve is automatically controlled by the pressure sensor and solenoid valve of the regulating system. Whether the opening and closing action of the intake control valve is flexible is very important to the reliability of the screw machine.

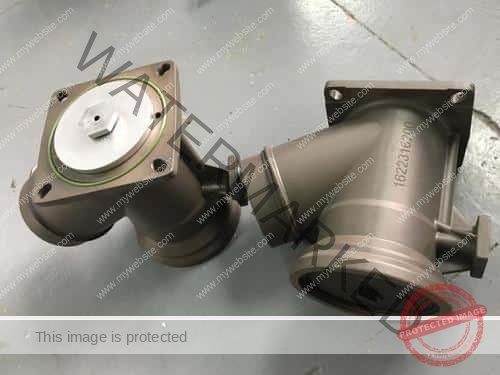

China Dealer for Ingersoll Rand Intake Valve-Unloader Valve Assembly

What are the failures of the intake valve usually? The failure of the air valve is generally that the screw machine does not unload and the intake valve is not closed. If it is not loaded, the solenoid valve of the intake valve is damaged. The screw machine is injecting oil, and the valve body control block is faulty. The screw compressor is overloaded, and the intake valve is opened early when starting. Therefore, the intake control valve should be replaced with maintenance kits regularly to maintain good working conditions. During each maintenance, the parts must be removed to check the wear of each friction surface. Special attention should be paid to the surface of the rubber sealing ring. If there is damage or cracks, new parts must be replaced. After the repair kit is replaced, the parts should be replaced. Clean, the friction surface of the metal parts should be coated with lubricating oil.

Generally, the manual of the air compressor manufacturer stipulates that the intake valve repair kit should be replaced at 8000 hours, but in order to reduce the cost, some users basically do not maintain according to the service cycle. They are all repaired after the intake valve fails. It is recommended to delay the replacement time according to the specified time before the failure occurs. After all, the use environment of each screw compressor is different, but it is best to control it. Replace within a reasonable range.

02 Minimum Pressure Valve – MPV

The minimum pressure valve, also known as the pressure maintenance valve, is located at the outlet above the oil-gas separator. It is composed of valve body, valve core, spring, sealing ring, adjusting screw, etc.

The function of the minimum pressure valve in the compressor is as follows: the cycle pressure necessary for lubrication is quickly established when the equipment is started to avoid the equipment from being worn due to poor lubrication; it acts as a buffer to control the gas flow rate through the oil-gas separation filter element to prevent high-speed airflow damage The oil and gas separation effect brings the lubricating oil out of the system to avoid the excessive pressure difference between the two sides of the oil and gas separation filter element from damaging the filter material; the non-return function has the function of a one-way valve. When the compressor stops working or enters the no-load state, the pressure in the oil and gas barrel drops, and the minimum pressure valve can prevent the gas from the gas storage tank from returning to the oil and gas barrel.

Common malfunctions:

There are many compressor failures caused by the minimum pressure valve, mainly as follows: the cylinder safety valve jets during operation, this failure is because the minimum pressure valve is not opened, resulting in excessive pressure, safety valve pressure relief protection; motor during operation Overload protection, because the minimum pressure valve is not opened, the pressure is too high, the motor is overloaded, and the thermal relay protects the shutdown; the compressor fails to start, and the minimum pressure valve is not closed tightly, resulting in the return of compressed air in the pipe network, and the startup failure under pressure; when unloading The oil pressure is high and the energy consumption increases. Because the minimum pressure valve is not tightly closed, the compressed air of the pipe network returns when the unit is unloaded, which causes the pressure in the compression chamber to rise and the oil pressure rises.

The reasons for the improper closing, damage and failure of the minimum pressure valve are: poor air quality or external impurities entering the unit, impurity particles driven by the high-pressure airflow, impact the minimum pressure valve, causing damage to the minimum pressure valve components, or Dirt is trapped between the sealing surfaces, causing the minimum pressure valve to fail; the compressor is filled with too much oil, and too much lubricating oil will form oil viscosity in the minimum pressure valve, causing the valve plate to close or open; the minimum pressure valve is based on a specific Depending on the design of the working conditions, if the working conditions fluctuate greatly or deviate from the design value for a long time, the minimum pressure valve will quickly fail; when the compressor is stopped for a long time and then turned on, the moisture contained in the lubricating oil and air will be inside the equipment unit. Accumulate, corrode various parts of the minimum pressure valve, and form oil viscosity.

03 Safety Valve

The safety valve is also called the overflow valve, which plays a role of safety protection in the compressor system. When the system pressure exceeds the specified value, the safety valve opens to discharge part of the gas in the system into the atmosphere, so that the system pressure does not exceed the allowable value, so as to ensure that the system does not cause accidents due to excessive pressure.

The common faults of safety valves are as follows:
(1) Gas leakage or failure to start. Insufficient airtightness is mostly caused by the lack of maintenance for the compressor for a long time, and the surface of the accessories is too dirty or worn, and should be cleaned and replaced in time. Another possibility that cannot be started is that the settings are inaccurate.

(2) Constant vibration. The matching spring is not suitable, the stiffness is improper, and it needs to be adjusted.
Compressor safety valves belong to the category of automatic valves. According to the “Safety Valve Safety Technical Supervision Regulations”, the regular verification of safety valves is generally at least once a year. The formal safety valve calibration methods include: off-line calibration of the calibration platform, online instrument calibration, and step-up jump method validation. It can also be checked by a simple method, that is, when the compressor is working with full load, gently open the valve cover, if the safety valve can exhaust outward, it is regarded as normal. High-temperature oil mist will be brought out when the safety valve is vented outwards, so pay attention to safety.

04 Temperature Control Valve

The function of the temperature control valve is to control the exhaust temperature of the machine head. Its working principle is that the temperature control valve core adjusts the oil passage formed between the valve body and the housing through expansion and contraction according to the principle of thermal expansion and contraction. Control the proportion of lubricating oil entering the oil cooler to ensure that the rotor temperature is within the set interval.
When the exhaust temperature of the machine head is too low, moisture will precipitate in the oil and gas barrels, causing the lubricating oil to emulsify. When the cold machine starts, the temperature control valve forces the lubricating oil directly into the machine head without passing through the oil cooler. When the oil temperature rises to a certain value, the temperature control valve completely opens the passage through the oil cooler. At this time, all the lubricating oil is cooled by the oil cooler and then sprayed into the machine head.

Since the lubricating oil entering the temperature control valve is not filtered, the internal passage of the temperature control valve is more complicated, which is easy to cause dirt accumulation. After long-term use, the failure rate of the temperature control valve is relatively high, which often leads to high temperature protection of the machine. In addition, after the temperature control valve completely opens the passage through the oil cooler, it cannot completely cut off the passage of hot oil directly into the machine head. The temperature of the lubricating oil entering the machine head is always higher than the outlet temperature of the oil cooler, resulting in low cooling efficiency. Therefore, some manufacturers’ models do not have a temperature control valve, and control the oil temperature by controlling the start and stop of the fan motor. When the exhaust temperature of the machine head rises to 90°C, the fan starts to run. If the temperature is lower than 70°C, the fan stops. , Keep the temperature within a certain range.

By checking the four oil pipes connected with the temperature control valve, it can be judged whether the temperature control valve is working normally. The four oil pipes are: oil barrel to temperature control valve, temperature control valve to oil cooler, oil cooler to temperature control valve, and temperature control valve to oil filter; normal temperatures are: high, high, low, slightly higher .

05 Oil Cut Valve / Oil Stop Valve

The oil cut-off valve is a switch used to control the main oil path into the screw head. Its function is to cut off the oil supply to the main engine when the compressor is stopped, so as to prevent the lubricating oil from spraying out of the main engine port, and the oil backflow occurs at the moment of shutdown.

Common malfunctions:

During the use of the compressor, a small part of the impurities in the air will inevitably be mixed into the cooling oil, which may cause sedimentation and blockage when flowing through the oil cutoff valve, so that the oil cutoff valve cannot be opened with the opening of the equipment. In the closed or semi-closed state, the cooling oil flow is reduced, which seriously affects the cooling effect of the machine head, causing rapid high temperature trip after starting up, high temperature alarm or back spray of lubricating oil when shutting down.

Therefore, users need to clean and maintain the oil shut-off valve regularly, optimize the compressor operating environment, use it in an environment with good ventilation and heat dissipation, away from volatile gases, debris and floating debris, and replace the air filter in strict accordance with the pressure difference parameter requirements.

06 Check Valve or One-Way Valve

One-way valve is also called check valve, commonly known as one-way valve. In the compressed air system, it is mainly used to prevent the compressed oil and gas mixture from being suddenly back-injected into the main engine when the machine is shut down due to a sudden failure, causing the rotor to reverse rotation.

One-way valve sometimes fails to close tightly. The main reasons are: the rubber sealing ring of the one-way valve falls off, the spring is broken, the spring and the rubber sealing ring need to be replaced; there is a foreign body supporting the sealing ring, and the impurities on the sealing ring need to be cleaned.

07 Solenoid valve

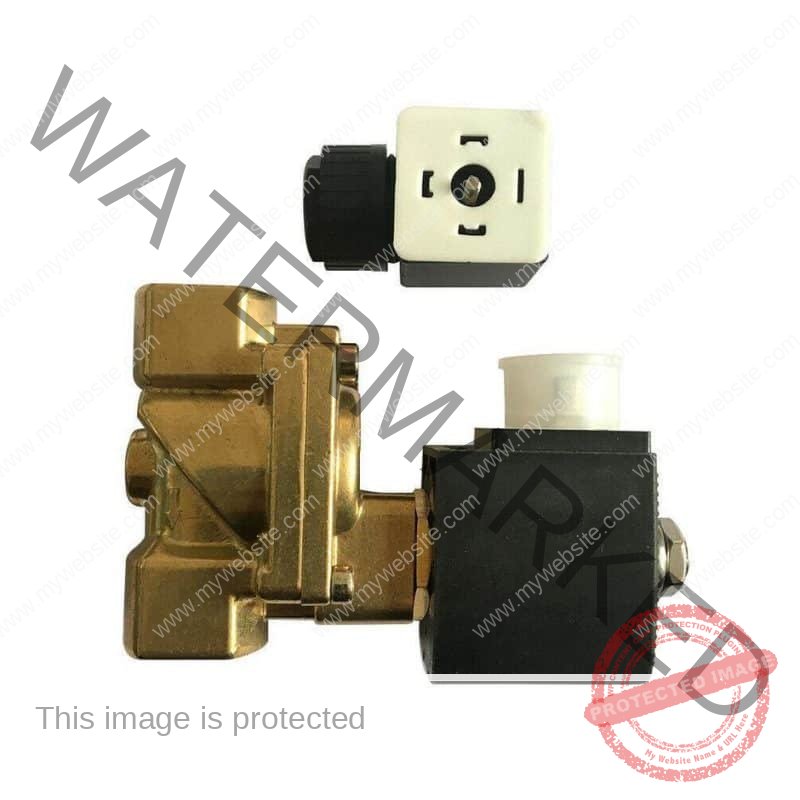

Sullair Compressor Solenoid Part

Genuine-Sullair-unloading-solenoid-valve-25038-666-screw-air-compressor-part

The solenoid valve belongs to the control system, including a loading solenoid valve and a vent solenoid valve. In the compressor, the solenoid valve is mainly used to adjust the bias, flow, speed, on-off and other parameters of the medium.

(1) Load solenoid valve

The loading solenoid valve is a two-position three normally closed solenoid valve, which controls the oil and gas barrel to the intake valve to perform the on and off of the cylinder pipeline under the instruction of the PLC. When the loading solenoid valve is energized, the compressed air in the oil and gas tank is allowed to enter the intake valve actuator cylinder, and the intake port is opened. When the loading solenoid valve loses power, it cuts off the passage from the oil and gas barrel to the intake valve execution cylinder, vents the gas in the execution cylinder, and closes the intake port.

(2) Vent the solenoid valve

The vent solenoid valve is a two-position, two-position solenoid valve, whose diameter must match that of the intake bypass valve. The diameter of the vent solenoid valve and the intake bypass valve should be able to ensure that the pressure in the oil and gas barrel is about 0.2MPa when the compressor is empty. When the compressor is unloaded and stopped, the vent solenoid valve loses power and releases the gas in the oil and gas tank to the intake filter.

Common malfunctions:

  • a. The solenoid valve terminal is loose or the thread terminal is dropped. The solenoid valve must not be energized, and the thread terminal can be tightened to solve the problem.
  • b. The solenoid valve is leaking. Air leakage will result in a lack of air pressure, making it difficult to open and close the valve. The reason is that the sealing gasket is damaged or the slide valve is worn to form blow-by.
  • c. The solenoid valve coil is burnt out. If the solenoid valve coil is burned out, the wiring of the solenoid valve can be removed and measured with a multimeter. If it is open, the solenoid valve coil is burned out.
  • d. The solenoid valve is stuck. The cooperation gap between the slide valve sleeve of the solenoid valve and the valve core is very small, and it is usually installed as a single piece. When mechanical impurities are brought in or there is too little lubricating oil, it is easy to get stuck.

Disposal method: Use a steel wire to poke into the small hole in the head to make it rebound. The complete solution is to remove the solenoid valve, take out the valve core and valve core sleeve, and clean, so that the valve core moves sensitively in the valve sleeve. When disassembling, pay attention to the installation sequence of the components and the orientation of the external wiring, so that the reinstallation and wiring are correct. Also check whether the oil spray hole of the lubricator is blocked and whether the lubricating oil is satisfactory.

08 The last but not the least: Compressed Air Pressure Regulating Valve – Regulator

Regulate-Air-Compressor through the regulating valve When you operate an air compressor, the success of your project depends largely on the pressure of the air itself. To get the proper pressure for each application, you need to make sure that the settings are correct. In order to make these adjustments and make sure that you have indeed made the correct settings, there is a function called the air compressor pressure regulating valve.

One of the most important components of an air compressor is the pressure regulator, which controls the air flow through the system. Without this type of control function, the pressure and intensity of the air flowing from the compressor tank into the pneumatic tool cannot be adjusted. The regulator protects each tool from too high or too low power, thereby helping to ensure the quality of pneumatic applications.

Why adjust the air compressor?

Air pressure regulators are important because different types of pneumatic tools require different pressure levels. If you try to power a slow-moving tool with the same pressure required for fast-moving operations, you may overwhelm the tool. If you do the opposite, the latter operation may produce plain results.

Air-Compressor Pressure Regulator Vavlejpg

When you adjust the air compressor, you can reduce the energy required to run pneumatic operations. Without the function of a pressure regulator, you may consume a lot of energy in each working day to meet peak demand, even if only a small part of the application requires so much energy. Essentially, there are three reasons to adjust your air compressor: to properly service your pneumatic tools, simplify applications, and save energy.

Chengdu Pudding Mechatronic Co., CPMC is one of the main online distributors for all kinds of air compressors, the related spare parts such as valves as mentioned above, the filtration products, air treatment products and the wood working tools of blades. Our network ensures us to have a great selection of quality products and better prices. If you are looking for the right distributor supplier in China for your import, please feel free and never hesitate to contact us. Learn more about Chengdu Pudding Mechatronic Co. CPMC.

1089070213 Genuine Original Atlas Copco Solenoid Valve From China Supplier

Atlas Copco Genuine Original Valves Catalog with Parts Numbers for G30 G37 G45 Models

As complex mechanical equipment, the compressor is composed of hundreds of different parts in an orderly combination. The smooth and efficient operation of the compressor depends on the good operation and organic cooperation of various components, especially key components, and valves are one of them. Look at this post, China’s main air compressors international distributor-Chengdu Pudding Mechatronic Co. CPMC present you with the Atlas Copco G30 G37 G45 All Genuine Original Valves Catalog with Parts Numbers. If you are looking for genuine original valves parts from Atlas Copco China, you are on the right page.  Working closely with Atlas Copco China mainland network and inner relationship (resources), CPMC sets itself apart from any other suppliers. You can feel free to contact us. If you can not find the right part numbers, you can simply take some clear pictures of your onsite machine’s valves with the valve brand, part numbers for us to do cross-checking. We hope to get the right match with attractive prices.

Typical Valves in Atlas Copco Air Compressors Models G30 G37 G45

  • Unloader Valve Kit
  • Minimum Pressure Valve/MPV/kit
  • Safety Valve
  • Temperature Control Valve
  • Oil Cut Valve
  • Check Valve
Atlas Copco G30 G37 G45 All Genuine Original Valves

Atlas Copco G30 G37 G45 All Genuine Original Valves

2901 1615 00      Scavenge line kit
1622 3157 00 • 1 Scavenge line pipe
0663 2108 11 • 1 O-ring
1613 9005 01 • 1 Non-return valve
0661 1000 38 • 1 Seal washer
9820 9572 00 • 1 Instruction scavenge line kit

Unloader kit
2902 0161 00 G 30
0160 0996 86 • 2 Cross rec screw
0211 1957 50 • 2 Screw
0301 2318 00 • 2 Washer
0661 1000 40 • 1 Seal washer
0663 2104 98 • 1 O-ring
0663 2111 55 • 1 O-ring
0663 7142 00 • 1 O-ring
1622 1755 80 • 1 Valve assy
1622 1790 00 • 1 Guidance tape
1622 1797 05 • 1 Bushing
1622 1798 00 • 1 Quad-ring
1622 2903 00 • 1 Spring guide
1622 2904 00 • 1 Spring
1622 2905 00 • 1 High temperature
1622 2906 00 • 1 Bushing
1622 3694 80 • 1 Blow off valve

Unloader valve Kit
2901 1622 00       G 37, G 45
1613 6818 01 • 1 Inlet valve
1622 3173 00 • 1 Tape
1622 3170 05 • 1 Bushing
1622 3168 00 • 1 Ring
0663 7149 00 • 1 O-ring
0160 0996 86 • 2 Cross rec screw
0301 2318 00 • 2 Washer
1622 3694 80 • 1 Blow off valve
0663 2111 55 • 1 O-ring
1622 3182 00 • 1 Guide
1622 3183 00 • 1 Seal
1622 3184 00 • 1 Bushing
1622 3185 00 • 1 Spring
0661 1000 40 • 1 Seal washer
0663 7150 00 • 1 O-ring
0211 1957 64 • 2 Hexagon socket screw
9820 4384 00 • 1 Instr. assembly
1630 0269 01 • 1 Tube
0663 2104 83 • 2 O-ring

2901 1453 00 1 MPV kit
0663 7139 00 • 1 O-ring
0663 2116 70 • 1 O-ring
1613 3223 01 • 1 Washer
1622 3662 00 • 1 Spring
0663 2101 01 • 1 O-ring
1630 0269 01 • 1 Tube
1622 3664 00 • 1 Spring
0335 3111 00 • 1 Circlips
0663 3120 00 • 1 O-ring
9820 9551 00 • 1 Instruction Minimum pressure valve kit
9820 9785 40 • 1 Instruction Minimum pressure valve

2901 2020 00 1 Check & Oil stop valve kit
1613 2359 00 • 1 Piston
0686 3718 19 • 1 Plug
1622 9022 00 • 1 Intg. check valve
1625 8407 00 • 1 Spring
1622 5662 00 • 1 Spring
0663 3130 00 • 2 O-ring
0686 3718 24 • 2 Plug
0663 2106 12 • 1 O-ring
0663 2107 78 • 3 O-ring
0686 3718 17 • 1 Plug
1613 8907 00 • 1 Valve body
0663 7136 00 • 2 O-ring
9820 9763 00 • 1 Instruction Check & Oil stop valve kit

2901 1616 00 1 Thermostat kit 38°C
1622 7064 01 • 1 Thermostatic valve 38°C
0663 2101 95 • 1 O-ring
9820 9573 00 • 1 Maintenance kit
9820 6046 00 • 1 Instruction Oil thermostat kit
9820 9733 72 • 1 Instruction Oil thermostat kit

1622 3490 80 1 Valve assembly
1622 7886 00 1 Gasket
0147 1325 03 4 Hexagon head screw
0301 2335 00 4 Plain washer
0571 0036 13 2 Nipple
0663 2113 43 2 O-ring
0574 8001 57 1 Hose assembly
1092 9082 10 1 Hose
1622 4780 00 1 Tube

1622 9080 00 1 Check valve
1613 2359 00 1 Piston
0686 3718 19 1 Plug
1622 9089 20 1 Oil stop valve
1622 5662 00 1 Spring
0663 3130 00 1 O-ring
1625 5978 00 1 Plug
0663 3130 00 1 O-ring
1622 5565 01 1 Nipple
1625 8407 00 1 Spring
1622 9022 00 1 Intg. check valve
0663 2106 12 1 O-ring
0663 2107 78 3 O-ring
0686 3718 24 2 Plug
1089 0574 70 1 Temperature sensor
0686 3718 17 1 Plug
0147 1338 03 4 Hexagon screw

1 Valve assembly
0147 1363 03 4 Hexagon head screw
0301 2344 00 4 Plain washer
1092 9011 75 1 Nipple
0571 0036 13 1 Nipple
0663 2113 43 2 O-ring
0574 8001 57 1 Hose assembly
0347 6115 00 2 Hose clip
1092 3012 13 1 Hose
1613 7912 01 1 Indicator

1622 3490 80 1 Unloader valve
0261 1099 40 • 1 Nut
1622 1797 05 • 1 Bushing
1622 1773 31 • 1 Piston rod
1622 2904 00 • 1 Spring
0160 0996 86 • 2 Cross rec screw
0335 2164 00 • 1 Circlip
1622 2905 00 • 1 Sealing
1622 2903 00 • 1 Spring guide
1622 2906 00 • 1 Bushing
0301 2318 00 • 2 Washer

• 1 Valve housing
1622 3491 00 • 1 Cover
0663 2111 55 • 1 O-ring
1622 3694 80 • 1 Blow off valve
0663 2104 98 • 1 O-ring
1622 1798 00 • 1 Quad-ring
1622 1789 00 • 1 Piston
1622 1790 00 • 1 Guidance tape
1622 1755 80 • 1 Inlet valve

1622 3488 80 1 Unloader valve
• 1 Housing
1622 3182 00 • 1 Guide
0663 2111 55 • 1 O-ring
1622 3184 00 • 1 Bushing
1622 3694 80 • 1 Blow off valve
1622 3183 00 • 1 Seal
1622 3185 00 • 1 Spring
1622 3173 00 • 1 Tape
1622 3169 00 • 1 Piston
1622 3163 00 • 1 Cover
0335 2179 00 • 1 Circlip
0663 7149 00 • 1 O-ring
1622 3168 00 • 1 Ring
0261 1090 99 • 1 Nut
1622 3170 05 • 1 Bushing
1622 3164 10 • 1 Rod
1613 6818 01 • 1 Inlet valve
0160 0996 86 • 2 Cross rec screw
0301 2318 00 • 2 Washer
1089 0702 13 1 Solenoid valve

1092 0000 72 • 1 Sight glass
0663 3130 00 • 1 O-ring
1622 3140 01 • 1 Oil separator
1622 3157 00 • 1 Scavenge line pipe
1092 0815 00 • 1 Shield
0663 3120 00 • 1 O-ring
0663 3119 00 • 1 O-ring
0663 3119 00 • 1 O-ring
0663 7139 00 • 1 O-ring
0147 1365 03 • 4 Hexagon bolt
0147 1244 03 • 1 Hexagon bolt
0663 2108 11 • 1 O-ring
1622 8525 00 • 1 Nipple
0335 3111 00 • 1 Retaining ring
0661 1000 40 • 1 Seal washer
1079 5840 03 • 1 Fitting
1622 5078 00 • 1 Nipple
0852 0010 22 • 1 Ball valve
0686 3718 16 • 1 Plug
0663 2113 37 • 1 O-ring
0571 0036 15 • 1 Nipple
0663 2113 20 • 2 O-ring
1092 0014 36 • 1 Plug
0663 2102 15 • 1 O-ring
0301 2344 00 • 4 Plain washer
0564 0000 72 • 1 Tee
0603 4105 03 • 1 Nipple
0686 3716 02 • 1 Plug
0661 1000 39 • 1 Seal washer

1092 2019 70 • 1 Vessel assembly
1092 0816 00 •• 1 Housing
0147 1958 24 •• 11 Screw
0663 2101 01 • 1 O-ring
1613 3221 00 • 1 Piston valve
1613 3222 00 • 1 Washer
1613 3223 01 • 1 Washer
1613 9005 01 • 1 Valve
1622 3661 00 • 1 Cover
1622 3662 00 • 1 Spring

1088 0019 01 2 Contact washer
1 Safety valve
1092 0019 19 7.5bar(e)
1092 0019 19 8.5bar(e)
1092 0019 19 10bar(e)
1092 0019 26 7.5bar(e)
1092 0019 26 8.5bar(e)
1092 0019 26 10bar(e)
0830 1008 39 100psig
0830 1008 39 125psig
0830 1008 40 150psig

1 Thermostatic valve
1622 7064 01 G 30
1622 7064 04 G 37 – 8.5bar
1622 7064 04 G 37 – 10bar
1622 7064 04 G 37 – 125psi
1622 7064 04 G 37 – 150psi

1092 9004 22 1 Pipe outlet
1089 0575 54 1 Pressure transducer
0686 3718 24 1 Plug
0605 8700 90 1 Bushing
0070 6002 03 AR Tube
0581 0000 35 1 Pipe coupling
0661 1000 38 1 Seal washer
0581 0000 87 1 Pipe coupling
0581 1200 23 1 Elbow
0852 0010 45 1 Ball valve

When you need a compressor valve, coming to our page is your most correct choice. We provide you with a list of valves, allowing you to choose the products you need at a glance. Chengdu Pudding Mechatronic Co., CPMC is one of the main Realiable Air Compressors Company, the related spare parts such as valves as mentioned above, the filtration products, air treatment products and the wood working tools of blades. Our network ensures us to have a great selection of quality products and better prices. If you are looking for the right distributor supplier in China for your business, please feel free and never hesitate to contact us by submitting a “RFQ”. Learn more about Chengdu Pudding Mechatronic Co. CPMC.

For Atlas Copco Models G30 G37 G45 GENUINE VALVEs Parts Price, Availability and leading delivery time frame, Please Submit a Quick RFQ, or send email to us, we will answer you timely!

    Full Name

    City

    Phone

    Company Name

    Detailed Shipping Add

    Quick RFQ, Pls provide P/N, compressors name plate, etc.

    Please attach 1 file up to 2MB if you have.

    Please Answer the Question:

    Electric Solenoid Valve for Atlas Copco Screw Air Compressors 24V China Distributor

    Atlas Copco GA37+-GA45+-GA55-GA75 All Genuine Original Valves Catalog with Parts Numbers by China Supplier CPMC

    As a complex mechanical equipment, the compressor is composed of hundreds of different parts in an orderly combination. The smooth and efficient operation of the compressor depends on the sound operation and organic cooperation of various components, especially key components, and valves are one of them. Here in this post, China main air compressors international distributor-Chengdu Pudding Mechatronic Co. CPMC present you the Atlas Copco GA37+-GA45+-GA55-GA75 All Genuine Original Valves Catalog with Parts Numbers. If you are looking for the genuine orginal valves parts from Atlas Copco China, you are on the right page.  Working closely with Atlas Copco China mainland network and inner relationship (resources), CPMC sets apart from any other suppliers. You can feel free to contact with us. If you can not find the right part numbers, you can simmply take some clear pictrues of your onsite machine’s vavels with the valve brand, part numbers for us to do cross-checking. And we wish to get the right match with amazing prices.

    Typical Valves in Atlas Copco Air Compressors Models GA37+-GA45+-GA55-GA75

    • Intake Valve
    • Minimum Pressure Valve/MPV/kit
    • Safety Valve
    • Temperature Control Valve
    • Oil Cut Valve
    • Check Valve

    2901 1453 00 1 Minimum Pressure Valve kit
    0663 7139 00 • 1 O-ring
    1613 3223 01 • 1 Washer
    1622 3662 00 • 1 Spring
    0663 2101 01 • 1 O-ring
    1622 3664 00 • 1 Spring
    0335 3111 00 • 1 Retaining ring
    0663 3120 00 • 1 O-ring

    2901 0503 01 1 Check valve kit
    0661 1000 40 • 1 Seal washer
    0663 2107 77 • 1 O-ring
    0663 7136 00 • 2 O-ring
    0663 7138 00 • 1 O-ring
    1613 8906 00 • 1 Check valve
    1613 5165 00 • 1 Spring
    2901 0217 01 1 Oil stop valve kit
    0663 7135 00 • 1 O-ring
    0663 3120 00 • 1 O-ring
    0661 1000 39 • 1 Washer
    1622 5662 00 • 1 Spring
    0661 1000 60 • 1 Seal
    0661 1000 43 • 1 Seal washer
    0663 2101 97 • 2 O-ring
    0663 2100 24 • 1 O-ring

    1613 8907 00 • 1 Valve body
    2901 1622 00 1 Unloader valve kit
    1613 6818 01 • 1 Valve
    1622 3173 00 • 1 Tape
    1622 3170 05 • 1 Bushing
    1622 3168 00 • 1 Ring
    0663 7149 00 • 1 O-ring
    0160 0996 86 • 2 Cross rec screw
    0301 2318 00 • 2 Washer
    1622 3694 80 • 1 Blow off valve
    0663 2111 55 • 1 O-ring
    1622 3182 00 • 1 Guide
    1622 3183 00 • 1 Seal
    1622 3184 00 • 1 Bushing
    1622 3185 00 • 1 Spring
    0661 1000 40 • 1 Seal washer
    0663 7150 00 • 1 O-ring
    0211 1957 64 • 2 Hex socket screw
    1 Unloader assembly
    Valve housing
    1622 4639 00 GA 37+
    1622 4639 00 GA 45+
    1622 4639 00 GA 55
    1622 4639 01 GA 75
    1613 2359 00 1 Piston
    0686 3718 19 1 Plug
    1613 8907 00 1 Valve body
    1622 5662 00 1 Spring
    1 Nipple
    1622 5565 00 GA 37+
    1622 5565 00 GA 45+
    1622 5565 00 GA 55
    1622 6613 01 GA 75
    0663 3130 00 1 O-ring
    0571 0036 07 1 Nipple
    0147 1377 03 4 Hexagon bolt
    1622 9639 00 1 Check valve
    1622 0796 00 1 Spring
    1622 4664 00 1 Gasket
    0686 3718 15 1 Plug
    1089 0574 70 1 Temp. sensor
    <<< >>> 1 Unloader assembly
    0661 1000 40 1 Seal washer
    1079 5840 03 1 Nipple
    0574 9914 18 1 Hose assembly
    1079 5840 03 1 Nipple
    0661 1000 40 1 Seal washer
    0663 7150 00 1 O-ring
    0147 1363 03 4 Hexagon bolt
    0301 2344 00 4 Washer
    1089 0574 12 1 Temp.sensor
    0989 4220 15 1 Grommet

    1622 3162 82
    Unloader assy
    1622 3162 00 • 1 Housing
    1622 3164 00 • 1 Rod
    1622 3163 00 • 1 Cover
    1613 6818 01 • 1 Valve
    1622 3168 00 • 1 Ring
    1622 3169 00 • 1 Piston
    1622 3173 00 • 1 Tape
    0663 7149 00 • 1 O-ring
    0663 2111 55 • 1 O-ring
    0261 1090 99 • 1 Nut
    0335 2179 00 • 1 Circlip
    1622 3170 05 • 1 Bushing
    0160 0996 86 • 2 Screw
    0301 2318 00 • 2 Washer
    1622 3182 00 • 1 Guide
    1622 3183 00 • 1 Seal
    1622 3184 00 • 1 Bushing
    1622 3185 00 • 1 Spring
    1622 3694 80 • 1 Blow-off valve
    1622 3694 00 •• 1 Housing
    1622 3694 01 •• 1 Cover
    1622 3694 02 •• 1 Piston
    1513 0477 00 •• 1 Piston ring
    1622 3694 03 •• 1 Seal
    1622 3694 04 •• 1 Seal
    1622 3694 05 •• 1 Rivet
    1622 3694 06 •• 2 Insert
    1622 3694 07 •• 1 Glide seal
    0226 3300 18 •• 4 Bolt
    0663 2112 69 •• 1 O-ring

    1
    Safety valve
    0832 1000 78 7.5 bar(e)
    0832 1000 78 8 bar(e)
    0832 1000 78 10 bar(e)
    0832 1000 79 13 bar(e)
    0830 1008 39 100 psig
    0830 1008 39 125 psig
    0830 1008 40 150 psig
    0830 1008 40 175 psig
    Vessel assy
    1622 5089 99 CE/ASME
    1622 5089 82 LL/DIR
    1622 5089 85 MOL
    1622 5089 95 MOM
    1622 5089 86 SQL
    0301 2321 00 • 4 Washer
    0147 1249 03 • 4 Hexagon bolt
    0663 2113 24 • 1 O-ring
    1622 3659 00 • 1 Oil level gauge
    1622 3140 00 • 1 Oil separator
    1622 3157 00 • 1 Scavenge line pipe
    1622 3138 00 • 1 Shield
    0663 3120 00 • 1 O-ring
    0663 7139 00 • 1 O-ring
    1622 3661 00 • 1 Cover
    0147 1365 03 • 4 Hexagon bolt
    0301 2344 00 • 4 Washer
    1613 3221 00 • 1 Piston valve
    1613 3222 00 • 1 Washer
    0147 1244 03 • 1 Hexagon bolt
    1613 3223 01 • 1 Washer
    1622 3662 00 • 1 Spring
    1622 3663 00 • 1 Piston
    0663 2101 01 • 1 O-ring
    0663 2108 11 • 1 O-ring
    1613 9005 01 • 1 Non return valve
    0661 1000 38 • 1 Seal washer
    1622 3664 00 • 1 Spring
    0335 3111 00 • 1 Retaining ring
    0101 2465 00 • 3 Parallel pin
    1622 5078 00 • 1 Nipple
    1622 3693 00 • 1 Nipple
    0244 4184 00 ••
    Screw
    1202 8992 00 •• 1 Plug
    0663 2102 15 •• 1 O-ring
    1622 3660 00 •• 1 Plug
    0663 2111 17 •• 1 O-ring
    1622 6560 00 1 Dataplate
    CE/ASME
    1622 6562 00 LL/DIR
    1622 6562 00 MOL
    1622 6562 00 MOM
    1622 6561 00 SQL
    1622 3125 80 1 Oil filter assy
    1622 3143 00 • 1 By pass valve
    1622 3125 00 • 1 Filter housing
    0661 1000 43 • 1 Seal washer
    0686 6446 00 • 1 Plug
    0335 2126 00 • 1 Circlip
    1622 4614 00 • 1 Cover
    0663 2113 16 • 1 O-ring
    0147 1325 03 • 3 Hexagon bolt
    0301 2335 00 • 3 Washer
    0392 1100 28 4 Vibration damper
    0301 2335 00 4 Washer
    0291 1110 00 4 Lock nut
    1613 8967 12 1 Grounding of vessel
    0147 1963 08 1 Hexagon bolt
    0852 0010 22 1 Ball valve
    0686 3718 16 1 Plug
    1 Thermostatic valve
    1622 7064 01 7.5 bar(e)
    1622 7064 01 8 bar(e)
    1622 7064 01 10 bar(e)
    1622 7064 04 13 bar(e)
    1622 7064 01 100 psig
    1622 7064 01 125 psig
    1622 7064 01 150 psig
    1622 7064 04 175 psig
    2 Nipple
    0571 0036 19 GA 75 7.5 bar(e)
    2 O-ring
    0663 3119 00 GA 75 7.5 bar(e)
    1 Flexible
    0574 9911 44 GA 75 7.5 bar(e)
    • 1 Pipe assy
    1617 0314 00
    1 Nut
    ID 170
    Sleeve
    1617 0386 00
    1 ID 170
    Pipe assy
    1624 2297 07 1 Valve
    ID 95
    1624 2297 07 ID 120
    1624 2297 08
    1 ID 170
    Pipe assy
    1617 1524 04 •• 1 HGB valve
    1617 0314 00 •• 1 Nut
    1617 0107 00 •• 1 Sleeve
    1619 5563 02 •• 2 Schräder Valve
    1619 5563 02
    ••
    1617 2750 00
    ••
    1617 0058 00
    ••
    1617 0082 00
    Schräder Valve ID 170
    Non return valve ID 170
    Nut
    ID 170
    Sleeve ID 170
    Insulation hose
    1617 2499 15 ID 95/50Hz
    1617 2499 13 ID 95/60Hz
    1617 2499 14 ID 120
    1617 2499 07 ID 170
    1617 1641 80 • 1 Insulation assy

    1613 6968 05 • 1 Nozzle
    7.5 bar(e)
    1613 6968 05 10 bar(e)
    1613 6968 06 13 bar(e)
    1613 6968 05 100 psig
    1613 6968 05 150 psig
    1613 6968 06 • 1 175 psig
    Solenoid valve
    1089 0621 09 7.5 bar(e)
    1089 0621 09 10 bar(e)
    1089 0621 09 13 bar(e)
    1089 0621 02 100 psig
    1089 0621 02 150 psig
    1089 0621 02 175 psig
    1622 1295 01 • 1 Cable

    1089 0621 20 • 1 Solenoid valve
    7.5 bar(e)
    1089 0621 20 10 bar(e)
    8092 2889 38 Water shut-off valve
    0017 2317 07 • AR Cable
    0694 5807 00 • 5 End socket
    0694 5285 13 • 1 Cable lug
    1900 2323 11 • 1 Module
    1089 0624 04 • 1 Solenoid valve
    0607 2900 17 • 2 Reducing socket

    When you adjust the air compressor, you can reduce the energy required to run pneumatic operations. Without the function of all above necessary valves, you may consume a lot of energy in each working day to meet peak demand, even if only a small part of the application requires so much energy. Essentially, there are three reasons to adjust your air compressor: to properly service your pneumatic tools, simplify applications, and save energy.

    Chengdu Pudding Mechatronic Co., CPMC is the main China air compressors supplier for all kinds of air compressors, the related spare parts such as valves as mentioned above, the filtration products, air treatment products and the wood working tools of blades. Our network ensures us to have a great selection of quality products and better prices. If you are looking for the right distributor supplier in China for your business, please feel free and never hesitate to contact us by submitting a “RFQ”. Learn more about Chengdu Pudding Mechatronic Co. CPMC.

    For Atlas Copco GA37+-GA45+-GA55-GA75 GENUINE VALVE Parts Price, Availability and leading delivery time frame, Please Submit a Quick RFQ, we will answer you timely!

      Full Name

      City

      Phone

      Company Name

      Detailed Shipping Add

      Quick RFQ, Pls provide P/N, compressors name plate, etc.

      Please attach 1 file up to 2MB if you have.

      Please Answer the Question:

      1089 0702 14 Solenoid Valve 120/6 for Atlas Copco Compressor

      Ultimate Solenoid Valves Parts Numbers List – Atlas Copco China Supplier

      In this post, Chengdu Pudding Mechatronic Co CPMC will share the ultimate parts numbers list (catalog) for Atlas Copco air compressors Solenoid Valves. If you are looking for reliable China supplier for genuine original Atlas Copco air compressors solenoid valves, please do not hesitate to contact CPMC China.

      Atlas Copco Solenoid Valves Parts Numbers Catalog – China Supplier

      Brand Name

      Atlas Copco Solenoid Valve PN

      Part Numbers

      Atlas Copco Solenoid Valve Part Numbers 1089031433
      Atlas Copco Solenoid Valve Part Numbers 1089035151
      Atlas Copco Solenoid Valve Part Numbers 1089035154
      Atlas Copco Solenoid Valve Part Numbers 1089035161
      Atlas Copco Solenoid Valve Part Numbers 1089038019
      Atlas Copco Solenoid Valve Part Numbers 1089038021
      Atlas Copco Solenoid Valve Part Numbers 1089038035
      Atlas Copco Solenoid Valve Part Numbers 1089038411
      Atlas Copco Solenoid Valve Part Numbers 1089038432
      Atlas Copco Solenoid Valve Part Numbers 1089038435
      Atlas Copco Solenoid Valve Part Numbers 1089039201
      Atlas Copco Solenoid Valve Part Numbers 1089039205
      Atlas Copco Solenoid Valve Part Numbers 1089039214
      Atlas Copco Solenoid Valve Part Numbers 1089042813
      Atlas Copco Solenoid Valve Part Numbers 1089042814
      Atlas Copco Solenoid Valve Part Numbers 1089042817
      Atlas Copco Solenoid Valve Part Numbers 1089042820
      Atlas Copco Solenoid Valve Part Numbers 1089042821
      Atlas Copco Solenoid Valve Part Numbers 1089045110
      Atlas Copco Solenoid Valve Part Numbers 1089047967
      Atlas Copco Solenoid Valve Part Numbers 1089050501
      Atlas Copco Solenoid Valve Part Numbers 1089050505
      Atlas Copco Solenoid Valve Part Numbers 1089050506
      Atlas Copco Solenoid Valve Part Numbers 1089050507
      Atlas Copco Solenoid Valve Part Numbers 1089050509
      Atlas Copco Solenoid Valve Part Numbers 1089050510
      Atlas Copco Solenoid Valve Part Numbers 1089058001
      Atlas Copco Solenoid Valve Part Numbers 1089058003
      Atlas Copco Solenoid Valve Part Numbers 1089059001
      Atlas Copco Solenoid Valve Part Numbers 1089059011
      Atlas Copco Solenoid Valve Part Numbers 1089059021
      Atlas Copco Solenoid Valve Part Numbers 1089059022
      Atlas Copco Solenoid Valve Part Numbers 1089059024
      Atlas Copco Solenoid Valve Part Numbers 1089059026
      Atlas Copco Solenoid Valve Part Numbers 1089059201
      Atlas Copco Solenoid Valve Part Numbers 1089059401
      Atlas Copco Solenoid Valve Part Numbers 1089061602
      Atlas Copco Solenoid Valve Part Numbers 1089062007
      Atlas Copco Solenoid Valve Part Numbers 1089062013
      Atlas Copco Solenoid Valve Part Numbers 1089062014
      Atlas Copco Solenoid Valve Part Numbers 1089062021
      Atlas Copco Solenoid Valve Part Numbers 1089062023
      Atlas Copco Solenoid Valve Part Numbers 1089062101
      Atlas Copco Solenoid Valve Part Numbers 1089062102
      Atlas Copco Solenoid Valve Part Numbers 1089062103
      Atlas Copco Solenoid Valve Part Numbers 1089062104
      Atlas Copco Solenoid Valve Part Numbers 1089062105
      Atlas Copco Solenoid Valve Part Numbers 1089062108
      Atlas Copco Solenoid Valve Part Numbers 1089062109
      Atlas Copco Solenoid Valve Part Numbers 1089062110
      Atlas Copco Solenoid Valve Part Numbers 1089062111
      Atlas Copco Solenoid Valve Part Numbers 1089062112
      Atlas Copco Solenoid Valve Part Numbers 1089062113
      Atlas Copco Solenoid Valve Part Numbers 1089062114
      Atlas Copco Solenoid Valve Part Numbers 1089062116
      Atlas Copco Solenoid Valve Part Numbers 1089062119
      Atlas Copco Solenoid Valve Part Numbers 1089062120
      Atlas Copco Solenoid Valve Part Numbers 1089062123
      Atlas Copco Solenoid Valve Part Numbers 1089062130
      Atlas Copco Solenoid Valve Part Numbers 1089062132
      Atlas Copco Solenoid Valve Part Numbers 1089062133
      Atlas Copco Solenoid Valve Part Numbers 1089062140
      Atlas Copco Solenoid Valve Part Numbers 1089062143
      Atlas Copco Solenoid Valve Part Numbers 1089062148
      Atlas Copco Solenoid Valve Part Numbers 1089062401
      Atlas Copco Solenoid Valve Part Numbers 1089064020
      Atlas Copco Solenoid Valve Part Numbers 1089064021
      Atlas Copco Solenoid Valve Part Numbers 1089064041
      Atlas Copco Solenoid Valve Part Numbers 1089064101
      Atlas Copco Solenoid Valve Part Numbers 1089066801
      Atlas Copco Solenoid Valve Part Numbers 1089066803
      Atlas Copco Solenoid Valve Part Numbers 1089066811
      Atlas Copco Solenoid Valve Part Numbers 1089066813
      Atlas Copco Solenoid Valve Part Numbers 1089070202
      Atlas Copco Solenoid Valve Part Numbers 1089070209
      Atlas Copco Solenoid Valve Part Numbers 1089070210
      Atlas Copco Solenoid Valve Part Numbers 1089070213
      Atlas Copco Solenoid Valve Part Numbers 1089070214
      Atlas Copco Solenoid Valve Part Numbers 1089926601
      Atlas Copco Solenoid Valve Part Numbers 1089926606
      Atlas Copco Solenoid Valve Part Numbers 1089931001
      Atlas Copco Solenoid Valve Part Numbers 1089947102
      Atlas Copco Solenoid Valve Part Numbers 1091800332
      Atlas Copco Solenoid Valve Part Numbers 1092000570
      Atlas Copco Solenoid Valve Part Numbers 1617221402
      Atlas Copco Solenoid Valve Part Numbers 1617221404
      Atlas Copco Solenoid Valve Part Numbers 1617221502
      Atlas Copco Solenoid Valve Part Numbers 1617908380
      Atlas Copco Solenoid Valve Part Numbers 1619676810
      Atlas Copco Solenoid Valve Part Numbers 1624061600
      Atlas Copco Solenoid Valve Part Numbers 1624640026
      Atlas Copco Solenoid Valve Part Numbers 1624640753
      Atlas Copco Solenoid Valve Part Numbers 2200599737
      Atlas Copco Solenoid Valve Part Numbers 2200599770
      Atlas Copco Solenoid Valve Part Numbers 2202261019
      Atlas Copco Solenoid Valve Part Numbers 2205442401
      Atlas Copco Solenoid Valve Part Numbers 2235556808
      Atlas Copco Solenoid Valve Part Numbers 2235579701
      Atlas Copco Solenoid Valve Part Numbers 2235629701
      Atlas Copco Solenoid Valve Part Numbers 2235871800
      Atlas Copco Solenoid Valve Part Numbers 2907012200

      Purchase Atlas Copco Solenoid Valve with CPMC DIRECTLY, Save up to 10%!

      Based in China, growing to be one of the large online air compressors and spare parts exporter, Chengdu Pudding Mechatronic Co. CPMC serves you all sorts of Atlas Copco original solenoid valves, from stationary air compressors to portable compressors, we get it covered. No hesitate to contact with us NOW!

      For Atlas Copco Solenoid Valves Price and Availability, Please Submit a Quick RFQ, we will Answer you soon!

      If you want a sample, the technical data sheets, or you may have Large quantities and wish us to quote the shipping costs to your country, just ask!

        Full Name

        City

        Phone

        Company Name

        Detailed Shipping Add

        Quick RFQ, Pls provide P/N, compressors name plate, etc.

        Please attach 1 file up to 2MB if you have.

        Please Answer the Question:

        Genuine Oil Cut Off Valve China Atlas Copco Supplier

        Atlas Copco Air Compressor Oil Shut-off (Oil Cut Off) Valve

        Welcome to import genuine Atlas Copco Oil-cut valves from China distributor. Chengdu Pudding Mechatronic Co. CPMC is a direct distributor of world class Air Compressors, OEM parts and aftermarket replacement. Based in China, with our own network and working closely with domestic and international top brands like Atlas Copco, Ingersoll Rand, Sullair, Quincy, CP, Jaguar, etc, we are proud to offer better prices (5-10% cheaper than on Alibaba).

        Brand: All models of Atlas oil cut-off valves are available
        Accessory type: valve
        Accessory part number: Available, choose according to your needs
        Accessories use: cut off the main engine oil supply to prevent the air compressor from spraying oil after the air filter
        Applicable air compressor model: Atlas Copco Rotary screw air compressors

        Atlas Copco Air Compressor Oil Shut-off Valve working principle

        When the compressor is working, the generated compressed air will open the oil shut-off valve, and the cooling oil can circulate in the system to cool the head screw. When the air compressor is not working, the spool of the oil cut-off valve is closed by the spring tension, so that the cooling oil in the oil-air separator cannot return to the screw.

        Atlas Copco Air Compressor Oil Shut-off Valve common malfunction

        During the use of the equipment, a small part of the impurities in the air will inevitably be mixed into the cooling oil, which may cause sedimentation and blockage when passing through the oil cutoff valve, so that the oil cutoff valve cannot be opened with the opening of the equipment, and is closed or closed. The semi-closed state will reduce the flow of cooling oil. Therefore, the cooling effect of the screw head will be seriously affected.

        Daily maintenance for Atlas Copco Air Compressor Oil Shut-off Valve

        We need to clean the shutoff valve regularly. In order to make the oil cutoff valve work normally, the impurities in the air mixed into the oil will also affect the temperature control valve and the oil filter. Therefore, we need to start from the source of the problem:
        1. The air filter is replaced strictly in accordance with the pressure difference parameters to minimize the air impurities entering the screw.
        2. Try to optimize the use environment of the equipment.

        Purchase Genuine Air Compressors Parts from CPMC, China, You Save up to 5-10%

        Chengdu Pudding Mechatronic Co. CPMC is growing to be one of the main China exporter focusing on International market. With our own distribution network AirCompressorsTrade.com, we are confident to offer you up to 5-10% cheaper than those middle handlers on Alibaba or eBay or Lazada, Amazon, etc. Our company specializes in providing original spare parts for Atlas Copco, Ingersoll Rand, Sullair, CompAir, KAESER, Kobelco, Hitachi, Fusheng, Gardner Denver. You can buy air filters, oil filters, oil separators, lubricating oils, maintenance kits, intake valves, safety valves, minimum pressure valves, temperature sensors, pressure sensors, precision filters, fans, fan assembly, fan motors, after coolers and so on.

        China supplier for Ingersoll Rand Therma Valve Element

        Why is it So Important to have Temperature Control Valve for Air Compressor?

        The temperature control valve of the screw air compressor is installed between the machine head and the oil and gas separation barrel, on the side of the oil filter. The temperature control valve has a total of three oil pipes, one is connected to the oil and gas separation barrel, one is connected to the oil filter, and the other is connected to the cooler. When the lubricating oil comes in, according to the oil temperature, the valve core will automatically expand and contract, so that the lubricating oil enters the oil filter for filtering or enters the cooler for cooling. What are the consequences if the screw air compressor does not require a temperature control valve and does not install it?

        What harm will the screw air compressor have if there is no temperature control valve?

        1. The temperature control valve of the air compressor plays a role of thermostatic control. If the temperature control valve is missing, it will cause the air compressor to trip at high temperature.

        2. The temperature control valve is a component that controls the flow of lubricating oil. If the action is not in place, the temperature of the unit may be too high or too low.

        3. Without a temperature control valve, the temperature of the air compressor lubricating oil will rise after working, and the high-temperature oil will circulate to the lubrication system for continued use. The oil temperature will continue to rise, speeding up the deterioration of the oil, increasing the equipment load and friction loss Seriously, shorten the life of the equipment; increase the work of the cooler, increase the power consumption, increase the operating cost, and waste energy.

        If the screw air compressor is not equipped with a temperature control valve, it will cause a lot of problems, which will seriously affect the performance and working conditions of the air compressor. The cost required is more than the cost of the temperature control valve. If you are looking original thermal valve, learn more “Genuine Thermostat Valve by Reliable China Distribution Network“.

        Screw Air Compressors Unloadig Valve Assembly 1622348880

        10 Minutes to Quickly Understand the 5 Key Valves of the Air Compressors

        Air compressors have different valves, and each valve has a different function and purpose. If you have a thorough understanding of the design function and working principle of each valve, it will be better for the future inspection and maintenance of air compressors. Here Chengdu Pudding Mechatronic Co. CPMC provide the critical advice to help you understand the common faults and principles of the 5 key valves in air compressor system.

        Because the valve has a certain service life, when the use time reaches the limit that the valve can withstand, it is inevitable that the valve will fail, so how should we avoid it?

        The five major valve parts of the fuel injection air compressor are: Unloading valve, Min pressure valve, Oil stop valve, Check valve (One way valve) and Thermostatic valve. Let’s interpret each valve function and troubleshooting one by one.

        A. Unloading valve function

        When the gas consumption changes, the intake valve adjusts the opening degree of the valve body through the control system to match the gas consumption. It is a valve that controls the air compressor to produce and not produce gas.

        Common corresponding faults:

        1. The air compressor is not loaded. This fault control panel displays (no alarm; the operating state is loaded, the fuel injection pressure is very small or 0’; the machine head outlet temperature is less than 70C° to determine the machine
        The group is not loaded. The problem lies in the unloading valve body, control circuit, loading and unloading solenoid valve and other parts, which need to be checked and eliminated one by one.

        2. The air compressor is not unloaded. This fault control panel displays (no alarm; operating status’unloading; fuel injection pressure rise>4; head outlet temperature>80°C) to determine the machine
        The group is not uninstalled. The problem lies in the unloading valve body, control circuit, loading and unloading solenoid valve, etc., which need to be checked and eliminated one by one.

        B. Minimum pressure valve

        Function:
        1. The opening pressure of the minimum pressure valve is about 4 bar, to ensure that the pressure in the cylinder is not lower than this minimum pressure when the air is output, so as to avoid excessive air flow rate causing oil and gas separation.
        The separation effect of the separator is reduced.

        2. When the machine starts, a certain pressure is established in the oil cylinder to ensure the circulation of lubricating oil and provide the initial control pressure for the control loop.

        3. It has the function of a one-way valve to prevent the compressed air of the pipe network from returning to the inside of the machine.

        Common corresponding faults

        1. The safety valve of the oil cylinder sprays air during operation. This failure is because the minimum pressure valve is not opened, which causes the pressure in the cylinder to be too high, and the safety valve is pressure-relief protection.

        2. Motor overload protection occurs when the computer is running. This fault is that the minimum pressure valve is not opened, which causes the pressure in the cylinder to be too high, the main motor load increases, the current increases, and the thermal relayThe protector shuts down.

        3. The air compressor failed to start. This failure is that the minimum pressure valve is not closed tightly, causing the compressed air of the pipe network to return, causing a certain pressure in the oil cylinder, causing the unit to fail to start.
        verb: move. When the air compressor is started, when the control computer detects a certain pressure in the cylinder, the unit will not be able to start.

        4. The oil pressure is too high when the air compressor is unloaded. This fault is that the minimum pressure valve is not closed tightly. When the unit is unloaded, the compressed air of the pipe network will flow back, which will increase the pressure in the cylinder and cause the oil pressure to rise.
        High, the energy consumption of the unit increases.

        C. Oil cut-off valve

        Function:
        After the air compressor is turned on, the oil cut-off valve is opened, and the lubricating oil that has passed through the oil filter is injected into the main engine. After the compressor is shut down, the oil cut-off valve is closed to cut off the oil supply.

        Common corresponding faults:

        1. The machine will jump to high temperature quickly after starting up. This fault is that the oil cut-off valve is not opened and the lubricating oil cannot be sprayed into the machine head. The oil cut-off valve needs to be checked and maintained.

        2. High temperature alarm of air compressor. This fault is that the oil cut-off valve is not fully opened, and the amount of lubricating oil sprayed into the machine head is insufficient, and the oil cut-off valve needs to be cleaned and maintained.

        3. When the machine stops suddenly, the lubricating oil will be sprayed back into the air filter. This fault is caused by the lagging or lax closing of the shutoff valve when the unit suddenly shuts down. The shutoff valve needs to be cleaned and maintained.

        D. Check valve

        Function:
        The oil and gas mixture compressed by the main engine is unidirectionally delivered to the oil cylinder to prevent the oil and gas mixture in the cylinder from being sprayed back into the machine head when the machine fails suddenly, causing the rotor to reverse.

        Common corresponding faults:

        When the machine is stopped, the oil and gas mixture is sprayed back into the air filter. This fault is caused by the one-way valve stuck or damaged when the unit suddenly shuts down, and the one-way valve needs to be cleaned and maintained.

        E. Temperature control valve

        Function:

        1. The temperature control valve core uses the principle of thermal expansion and contraction to adjust the oil passage formed between the valve body and the shell by extending and contracting, and controls the proportion of lubricating oil entering the oil cooler to ensure rotation. The sub-temperature is within the control range.

        2. The temperature control valve is an original part that controls the outlet temperature of the machine head to be no less than 68. When the oil temperature is low, the temperature control valve is closed, and the lubricating oil is directly sprayed into the machine head to be quickly heated without passing through the cooler. The temperature at the outlet of the machine head can be increased rapidly to prevent the condensed water in the compressed air from being generated in the oil cylinder.

        Note:
        1. The opening temperature of the thermostatic valve is generally indicated on the valve core.
        2. The maximum opening temperature of the thermostatic valve is the marked temperature + 15°C.

        Learn more about Air Compressors Valves. Chengdu Air Compressor dealer keeps updating informative advice for buyer’s references. If you have further questions or requirements on spare parts, air compressors or woodworking tools, please feel free to contact with CPMC.

        1089 0702 14 Solenoid Valve 120/6 for Atlas Copco Compressor

        空压机上的电磁阀基础知识

        空气压缩机中的电磁阀具有广泛的用途。 电磁阀数量和种类繁多意味着它们几乎可以涵盖任何类型的流体或材料应用。 在本博客中,成都沛丁机电设备有限公司将讨论空压机上的电磁阀基础知识以及电磁阀在空气压缩机中的一些用途。

        电磁阀是流体学中最常用的控制元件。他们的任务是关闭、释放、计量、分配或混合流体。它们存在于许多应用领域。电磁阀提供快速安全的切换、高可靠性、长使用寿命、所用材料的良好介质兼容性、低控制功率和紧凑设计。

        Jaguar Air Compressor East Asia China Distributor

        空气压缩机 – Air Compressor

        空压机是用于生产压缩空气的机器。 它由一台由电动机提供动力的活塞式压缩机、一台冷干机和一个储气罐组成。 它的工作原理是空气压缩:从大气中抽取空气,经压缩机压缩后收集到一个罐中。 进气口处装有过滤器,以防止异物进入气缸盖。 冷却盘管去除压缩空气加热产生的冷凝水。

        在电磁阀的应用过程中,电磁阀必须处于常开工作状态。 对于小流量,推荐使用直接作用型 RD236(连接 1/4″)和 RB214,因为它们专门用于常开操作。对于大流量,使用先导式电磁阀,如 RB203 型(带有商业连接) 3/8”)推荐。

        当系统运行时,电动机运行压缩机,压缩机吸入过滤后的空气,对其进行压缩,将其送到冰箱,最后送到水箱。 在此阶段,电磁阀通电并关闭电路,使其保持在压力下。 当油箱达到要求的压力读数时,压力开关停止电机,单向阀将空气保持在油箱内。 为了防止压缩机在压力下保持太久而损坏,电磁阀然后断电,它允许排出仍然在回路中的多余空气。

        RB203型
        RD236 型,带系列 7 线圈
        2/2路NO直动电磁阀
        RB214 型,串联 2 个线圈
        2/2路NO直动电磁阀
        RB203 型,串联 2 个线圈
        2/2路常开先导电磁阀

        电磁阀的不同之处在于它们使用的电流特性、它们产生的磁场强度、它们用来调节流体的机制以及它们控制的流体的类型和特性。该机构从线性动作、柱塞式致动器到枢转电枢致动器和摇臂致动器不等。阀门可以使用双端口设计来调节流量或使用三端口或更多端口设计在端口之间切换流量。多个电磁阀可以一起放置在一个歧管上。阀体必须与流体相容;常见的材料有黄铜、不锈钢、铝和塑料。而且密封件必须与流体兼容。

        为了简化密封问题,螺帽、芯、弹簧、遮光环和其他组件经常暴露在流体中,因此它们也必须兼容。这些要求提出了一些特殊的问题。芯管必须是非磁性的,才能将螺线管的磁场传递到螺帽和芯。螺帽和芯需要具有良好磁性能的材料,例如铁,但铁容易腐蚀。可以使用不锈钢,因为它们有磁性和非磁性两种。例如,电磁阀可能使用 304 不锈钢阀体、305 不锈钢芯管、302 不锈钢弹簧和 430 F不锈钢(用于磁芯和螺帽的磁性不锈钢)。

        Solenoid Valve 1028872220 for Atlas Copco Compressor

        World Top 10 Solenoid Valves Manufactures Latest List Update

        Thanks for visiting this webpage top 10 world solenoid valves manufactures list. Solenoid valve is a kind of electromagnetic controlled industrial equipment, which is an automatic basic element for fluid control. It belongs to the actuator, not limited to hydraulic and pneumatic. It is used to adjust the direction, flow, speed and other parameters of the medium in the industrial control system. The solenoid valve can cooperate with different circuits to achieve the expected control effect and ensure the accuracy and flexibility of the control.

        Which brand of solenoid valve is better? There are many solenoid valve brands on the market, so how can we choose a cost-effective brand from many brands? For this reason, Chengdu Pudding Mechatronic Co. integrates the brand awareness, quality level, and quality of each solenoid valve. After-sales service, innovation ability, consumer reputation and other indicators are comprehensively selected, and the data of this list is released, which is convenient for you to refer to when choosing the solenoid valve brand. CPMC provides you with relevant product information such as what brand of solenoid valve is good, the top ten brands of solenoid valve, and the price of solenoid valve pictures. Due to the impact of the 2020-2021 new coronavirus epidemic around the world, there may be uncertainties such as price changes and abnormal price changes caused by page updates. For specific prices, please contact Chengdu Pudding Mechatronic Co. for free consultation. The following is the latest information. Let’s take a look at the specific content of the world’s top ten mainstream solenoid valve manufacturers!

         2020 World Top 10 Mainstream Solenoid Valve Manufacturers

        Friendly reminder from Chengdu Pudding Mechatronic Co.: The information is collected from the Internet. The following rankings are in no particular order and are for reference only. Thank you! CPMC provides you with: solenoid valve agents, solenoid valve models and other product introductions, welcome to send e-mail consultation, We will provide you with the best service!

        Top 1. United States (Honeywell)

        Honeywell International (Honeywell International) is a diversified high-tech and manufacturing company with a turnover of more than 30 billion U.S. dollars. Globally, its business involves: aviation products and services, building, home and industrial control technology, automotive products, Turbocharger, and special materials. Honeywell is headquartered in Morristown, New Jersey, USA. Honeywell has 116,000 employees in more than 100 countries/regions around the world to satisfy customers and strive to become the world’s self-control pioneer in order to achieve the goal of mutually beneficial growth.

        Top 2.Germany (Gemu)

        GEMÜ is the world’s leading manufacturer of valves, automation components and other piping products. Since 1964, after 56 years of development, the company has been manufacturing innovative products and customized solutions. Products developed by the GEMÜ Group are used for liquid, vapor and gas components and system equipment. There are currently more than 400,000 product versions, and the combination of internally developed metal and plastic measurement and control and adjustment components is unparalleled in the world. In addition, GEMÜ also provides engineering and manufacturing services for products such as multi-port valve blocks or products for the medical industry.

        Top 3.Taiwan (Airtac)

        AirTAC is a world-renowned large-scale enterprise group specializing in the production of various pneumatic equipment. It is committed to providing customers with pneumatic control components, pneumatic actuators, air source processing components, pneumatic auxiliary components and other pneumatic equipment, services and services that meet their needs. Solutions to create long-term value and potential growth for customers. Airtac was founded in 1988 and now has three production bases and one marketing center. The production base of Airtac has a plant area of ​​378,000 square meters, with a total of more than 4,500 employees worldwide and more than 300 professional R&D technicians. The total investment is 150 million US dollars, and the annual production capacity is 50 million sets. The products are sold well in China, Southeast Asia, Europe and the United States and other countries and regions. AirTAC has nearly 100 direct sales branches/sales departments in mainland China, and thousands of distributors around the world, mainly located in Europe, America and Asia. It has formed a complete sales network and after-sales service system, ready for customers Provide convenient services.

        Top 4. Parker, USA

        Parker’s annual sales exceed 1.3 billion US dollars. In fiscal 2012, Parker Hannifin Parker is the world’s leading manufacturer of diversified motion and control technology and systems, providing precision design for a variety of mobile, industrial and aerospace markets solution. Parker has approximately 60,000 employees in 48 countries around the world. With Parker’s engineering expertise and a unique position of extensive core technology, Parker Corporation solves some of the world’s greatest engineering challenges. Parker works with customers to improve their productivity and profitability, and seeks new ways to solve the biggest challenges facing humanity.

        Top 5. United States (Humphrey)

        American Humphrey is an internationally renowned supplier of pneumatic equipment, the main products are solenoid valves, cylinders, exhaust valves, and manual valves. Its sales, service and distribution networks spread all over the world. It was established more than 119 years ago. The commercialization of Humphrey’s innovative gas lamp products can be traced back to 1901. Today, Humphrey is recognized as a leading manufacturer of pneumatic products, serving global companies. They certify the technology of their standard products on the basis of extensive industry expertise, enabling them to create truly unique customized solutions for commercial and industrial applications. It has a long-standing reputation in the field of special valve control technology.

        Top 6. Japan (SMC)

        SMC was established in 1959. It has been 61 years since today. SMC has become a world-class R&D, manufacturer and seller of pneumatic components. It also has a huge market network in Japan to provide customers with products and after-sales service. As the world’s most famous pneumatic component manufacturing and sales multinational company, SMC has a sales network and production bases all over the world. SMC products are well-known in the world for their complete variety, high reliability, economy and durability, and can meet the needs of different users in many fields.

        Top 7. United States (ASCO)

        American ASCO is a member of the Emerson Group, one of the world’s top 500 companies. It is an internationally renowned manufacturer specializing in the production of fluid control valves and pneumatic control components. It has more than 100 years of production experience and has more than 30 factories in the world. Customers all over the world provide more than 23,000 fluid control products. ASCO solenoid valves are mainly used for precise control, in industrial and commercial applications to control all fluids and gaseous substances such as air, gas, water, light oil, and steam. In order to meet the needs of the market, ASCO manufactures a variety of special valves at the same time. When the market standard products cannot meet customers with special needs, these special valves can meet the individual needs of customers.

        Top 8. Germany (FESTO) Festo

        Germany Festo (Festo) is a world-renowned manufacturer of pneumatic and electric components, components and systems. It is the first company in the world pneumatic industry to pass ISO9001 certification. Festo’s brand quality includes many aspects, mainly in intelligent and easy-to-operate product design, products with long service life, long-lasting efficiency optimization, globalization and all-day service. Festo provides users with the best products and services.

        Top 9. British Norgren

        NORGREN, UK, is a world-renowned manufacturer and supplier of pneumatic products. It provides pneumatic and fluid control solutions to customers around the world, produces and supplies a full range of pneumatic control and automation products, all holding ISO9001 quality standards. At the same time, Norgren designs and produces thousands of special products every year to meet the specific requirements of customers. Companies in 26 countries can provide customers with pneumatic control circuit design, pneumatic technology and product sales. Technical consultation, specialized application guidance, technical support at all levels, and local production and processing of conventional products.

        Top 10.Germany Burkert

        BURKERT, Germany, has been established for nearly 70 years. It has 5 factories in Germany and France. It is a global multinational enterprise that focuses on the research and development and manufacturing of products and systems in the field of fluid control, and is also a global leader in this field. A multinational group that has established branches in more than forty countries and regions around the world has become a global leader in the field of fluid control systems.

        Learn more air compressors Solenoid valves in CPMC online store. CPMC is growing to be one of the main China air compressors and parts store. Unlike any other third party platform such as Alibaba, Global Sources, Made-in-China, CPMC serves as distributor with the wholesale prices. Our offers are more competitive! Need one solenoid valve? Email to sales@aircompressorstrade.com now!

        Air Compressors Bypass Valve - Hot Air valve

        What is the Hot Air Bypass Valve of an Air Compressor? Why We Need It?

        In the post-processing equipment of the screw air compressor, the main function of the refrigeration dryer is to reduce the temperature of the compressed air, purify the compressed air, and remove the water vapor contained in it. So as to ensure the quality of compressed air and prevent damage to the equipment used. Low temperature is detrimental to many equipment, and the same is true for refrigeration dryers. With the help of hot air bypass valve, the dryer can be operated at an optimal temperature.

        Why Air Compressor Refrigeration Dryer Needs a Hot Air Bypass Valve

        So, what is a hot gas bypass valve? The hot gas bypass is a valve that automatically adjusts the cooling temperature in the drying exchanger based on the refrigeration pressure. The pressure measured after the heat exchanger is directly related to the temperature in the system.

        When the air handling capacity of the refrigeration dryer decreases, the evaporator cooling capacity is too large. When the evaporator cavity temperature drops below 0°C, the condensed water will freeze, resulting in “ice blockage” and blockage of the air circuit , The dryer cannot work. In order to eliminate the above situation, the air compressor’s refrigeration and dryer needs to introduce a hot gas bypass valve to cause high temperature and high pressure gas from the compressor, effectively preventing the occurrence of “ice blocking”.

        In addition to the reduction in air handling capacity that can cause “ice blockage”, the ambient temperature and the drainage condition of the dryer can also cause “ice blockage”.

        How to Choose an Effective Air Compressor Bypass Valve?

        It is important to select a hot gas bypass valve that can be fully opened and closed according to the pressure input. When the load is particularly low, a hot gas bypass valve with poor opening capability is unlikely to prevent freezing.

        The compressed air system is a whole, which requires air compressors, air storage tanks, refrigeration dryers, precision filters, etc. to cooperate with each other to play their respective performance roles in order to obtain high-quality compressed air that meets the production process. Learn all kinds Air Compressors Valves!

        Air Compressors intake valve assembly

        Different Valves in Air Compressors – Functions & Malfunctions Well Explained

        As a complex mechanical equipment, the compressor is composed of hundreds of different parts in an orderly combination. The smooth and efficient operation of the compressor depends on the sound operation and organic cooperation of various components, especially key components, and valves are one of them.

        Due to different compression types, different design ideas, and different brands, the types of valves required in compressors are also different. Although it is not possible to summarize all compressor valves, we can select the important types to make a summary.

        Eight Typical Valves in Air Compressors

        Whether you are an air compressor sales person, or mechanical maintenance staff member, or a purchaser for your factory, you should have heard or be very familiar with the following 8 famous valves types in air compressors:

        1. Intake Valve
        2. Minimum Pressure Valve/MPV
        3. Safety Valve
        4. Temperature Control Valve
        5. Oil Cut Valve
        6. Check Valve
        7. Solenoid Valve
        8. Regulating Valve

        01 Intake Valve (Unloader or Loading Valve)

        The intake valve is the breathing port of the air compressor. The ordinary air enters the intake valve and then goes to the compressor head, where it is compressed to produce compressed gas. It can control the loading and unloading of the air compressor and the size and flow of the air pressure. It is a main component (intake control system) on the air compressor.

        The working principle of the intake valve, the intake control valve is mainly composed of a valve body, a valve, a piston, a cylinder, a spring, a sealing ring, etc. It is equipped with a control block and a control solenoid valve on its side, which integrates on-off adjustment, load reduction, and dissipation. Sound, depressurization, and shutdown and vent functions. When unloading, a small part of the gas is released through the small hole in the valve to balance the intake air volume of the small hole of the intake control valve, so that the pressure in the separation oil tank is maintained at 0.2-0.3MPa, and the normal air compressor oil is maintained. cycle. The opening and closing action of the intake control valve is automatically controlled by the pressure sensor and solenoid valve of the regulating system. Whether the opening and closing action of the intake control valve is flexible is very important to the reliability of the screw machine.

        China Dealer for Ingersoll Rand Intake Valve-Unloader Valve Assembly

        What are the failures of the intake valve usually? The failure of the air valve is generally that the screw machine does not unload and the intake valve is not closed. If it is not loaded, the solenoid valve of the intake valve is damaged. The screw machine is injecting oil, and the valve body control block is faulty. The screw compressor is overloaded, and the intake valve is opened early when starting. Therefore, the intake control valve should be replaced with maintenance kits regularly to maintain good working conditions. During each maintenance, the parts must be removed to check the wear of each friction surface. Special attention should be paid to the surface of the rubber sealing ring. If there is damage or cracks, new parts must be replaced. After the repair kit is replaced, the parts should be replaced. Clean, the friction surface of the metal parts should be coated with lubricating oil.

        Generally, the manual of the air compressor manufacturer stipulates that the intake valve repair kit should be replaced at 8000 hours, but in order to reduce the cost, some users basically do not maintain according to the service cycle. They are all repaired after the intake valve fails. It is recommended to delay the replacement time according to the specified time before the failure occurs. After all, the use environment of each screw compressor is different, but it is best to control it. Replace within a reasonable range.

        02 Minimum Pressure Valve – MPV

        The minimum pressure valve, also known as the pressure maintenance valve, is located at the outlet above the oil-gas separator. It is composed of valve body, valve core, spring, sealing ring, adjusting screw, etc.

        The function of the minimum pressure valve in the compressor is as follows: the cycle pressure necessary for lubrication is quickly established when the equipment is started to avoid the equipment from being worn due to poor lubrication; it acts as a buffer to control the gas flow rate through the oil-gas separation filter element to prevent high-speed airflow damage The oil and gas separation effect brings the lubricating oil out of the system to avoid the excessive pressure difference between the two sides of the oil and gas separation filter element from damaging the filter material; the non-return function has the function of a one-way valve. When the compressor stops working or enters the no-load state, the pressure in the oil and gas barrel drops, and the minimum pressure valve can prevent the gas from the gas storage tank from returning to the oil and gas barrel.

        Common malfunctions:

        There are many compressor failures caused by the minimum pressure valve, mainly as follows: the cylinder safety valve jets during operation, this failure is because the minimum pressure valve is not opened, resulting in excessive pressure, safety valve pressure relief protection; motor during operation Overload protection, because the minimum pressure valve is not opened, the pressure is too high, the motor is overloaded, and the thermal relay protects the shutdown; the compressor fails to start, and the minimum pressure valve is not closed tightly, resulting in the return of compressed air in the pipe network, and the startup failure under pressure; when unloading The oil pressure is high and the energy consumption increases. Because the minimum pressure valve is not tightly closed, the compressed air of the pipe network returns when the unit is unloaded, which causes the pressure in the compression chamber to rise and the oil pressure rises.

        The reasons for the improper closing, damage and failure of the minimum pressure valve are: poor air quality or external impurities entering the unit, impurity particles driven by the high-pressure airflow, impact the minimum pressure valve, causing damage to the minimum pressure valve components, or Dirt is trapped between the sealing surfaces, causing the minimum pressure valve to fail; the compressor is filled with too much oil, and too much lubricating oil will form oil viscosity in the minimum pressure valve, causing the valve plate to close or open; the minimum pressure valve is based on a specific Depending on the design of the working conditions, if the working conditions fluctuate greatly or deviate from the design value for a long time, the minimum pressure valve will quickly fail; when the compressor is stopped for a long time and then turned on, the moisture contained in the lubricating oil and air will be inside the equipment unit. Accumulate, corrode various parts of the minimum pressure valve, and form oil viscosity.

        03 Safety Valve

        The safety valve is also called the overflow valve, which plays a role of safety protection in the compressor system. When the system pressure exceeds the specified value, the safety valve opens to discharge part of the gas in the system into the atmosphere, so that the system pressure does not exceed the allowable value, so as to ensure that the system does not cause accidents due to excessive pressure.

        The common faults of safety valves are as follows:
        (1) Gas leakage or failure to start. Insufficient airtightness is mostly caused by the lack of maintenance for the compressor for a long time, and the surface of the accessories is too dirty or worn, and should be cleaned and replaced in time. Another possibility that cannot be started is that the settings are inaccurate.

        (2) Constant vibration. The matching spring is not suitable, the stiffness is improper, and it needs to be adjusted.
        Compressor safety valves belong to the category of automatic valves. According to the “Safety Valve Safety Technical Supervision Regulations”, the regular verification of safety valves is generally at least once a year. The formal safety valve calibration methods include: off-line calibration of the calibration platform, online instrument calibration, and step-up jump method validation. It can also be checked by a simple method, that is, when the compressor is working with full load, gently open the valve cover, if the safety valve can exhaust outward, it is regarded as normal. High-temperature oil mist will be brought out when the safety valve is vented outwards, so pay attention to safety.

        04 Temperature Control Valve

        The function of the temperature control valve is to control the exhaust temperature of the machine head. Its working principle is that the temperature control valve core adjusts the oil passage formed between the valve body and the housing through expansion and contraction according to the principle of thermal expansion and contraction. Control the proportion of lubricating oil entering the oil cooler to ensure that the rotor temperature is within the set interval.
        When the exhaust temperature of the machine head is too low, moisture will precipitate in the oil and gas barrels, causing the lubricating oil to emulsify. When the cold machine starts, the temperature control valve forces the lubricating oil directly into the machine head without passing through the oil cooler. When the oil temperature rises to a certain value, the temperature control valve completely opens the passage through the oil cooler. At this time, all the lubricating oil is cooled by the oil cooler and then sprayed into the machine head.

        Since the lubricating oil entering the temperature control valve is not filtered, the internal passage of the temperature control valve is more complicated, which is easy to cause dirt accumulation. After long-term use, the failure rate of the temperature control valve is relatively high, which often leads to high temperature protection of the machine. In addition, after the temperature control valve completely opens the passage through the oil cooler, it cannot completely cut off the passage of hot oil directly into the machine head. The temperature of the lubricating oil entering the machine head is always higher than the outlet temperature of the oil cooler, resulting in low cooling efficiency. Therefore, some manufacturers’ models do not have a temperature control valve, and control the oil temperature by controlling the start and stop of the fan motor. When the exhaust temperature of the machine head rises to 90°C, the fan starts to run. If the temperature is lower than 70°C, the fan stops. , Keep the temperature within a certain range.

        By checking the four oil pipes connected with the temperature control valve, it can be judged whether the temperature control valve is working normally. The four oil pipes are: oil barrel to temperature control valve, temperature control valve to oil cooler, oil cooler to temperature control valve, and temperature control valve to oil filter; normal temperatures are: high, high, low, slightly higher .

        05 Oil Cut Valve / Oil Stop Valve

        The oil cut-off valve is a switch used to control the main oil path into the screw head. Its function is to cut off the oil supply to the main engine when the compressor is stopped, so as to prevent the lubricating oil from spraying out of the main engine port, and the oil backflow occurs at the moment of shutdown.

        Common malfunctions:

        During the use of the compressor, a small part of the impurities in the air will inevitably be mixed into the cooling oil, which may cause sedimentation and blockage when flowing through the oil cutoff valve, so that the oil cutoff valve cannot be opened with the opening of the equipment. In the closed or semi-closed state, the cooling oil flow is reduced, which seriously affects the cooling effect of the machine head, causing rapid high temperature trip after starting up, high temperature alarm or back spray of lubricating oil when shutting down.

        Therefore, users need to clean and maintain the oil shut-off valve regularly, optimize the compressor operating environment, use it in an environment with good ventilation and heat dissipation, away from volatile gases, debris and floating debris, and replace the air filter in strict accordance with the pressure difference parameter requirements.

        06 Check Valve or One-Way Valve

        One-way valve is also called check valve, commonly known as one-way valve. In the compressed air system, it is mainly used to prevent the compressed oil and gas mixture from being suddenly back-injected into the main engine when the machine is shut down due to a sudden failure, causing the rotor to reverse rotation.

        One-way valve sometimes fails to close tightly. The main reasons are: the rubber sealing ring of the one-way valve falls off, the spring is broken, the spring and the rubber sealing ring need to be replaced; there is a foreign body supporting the sealing ring, and the impurities on the sealing ring need to be cleaned.

        07 Solenoid valve

        Sullair Compressor Solenoid Part

        Genuine-Sullair-unloading-solenoid-valve-25038-666-screw-air-compressor-part

        The solenoid valve belongs to the control system, including a loading solenoid valve and a vent solenoid valve. In the compressor, the solenoid valve is mainly used to adjust the bias, flow, speed, on-off and other parameters of the medium.

        (1) Load solenoid valve

        The loading solenoid valve is a two-position three normally closed solenoid valve, which controls the oil and gas barrel to the intake valve to perform the on and off of the cylinder pipeline under the instruction of the PLC. When the loading solenoid valve is energized, the compressed air in the oil and gas tank is allowed to enter the intake valve actuator cylinder, and the intake port is opened. When the loading solenoid valve loses power, it cuts off the passage from the oil and gas barrel to the intake valve execution cylinder, vents the gas in the execution cylinder, and closes the intake port.

        (2) Vent the solenoid valve

        The vent solenoid valve is a two-position, two-position solenoid valve, whose diameter must match that of the intake bypass valve. The diameter of the vent solenoid valve and the intake bypass valve should be able to ensure that the pressure in the oil and gas barrel is about 0.2MPa when the compressor is empty. When the compressor is unloaded and stopped, the vent solenoid valve loses power and releases the gas in the oil and gas tank to the intake filter.

        Common malfunctions:

        • a. The solenoid valve terminal is loose or the thread terminal is dropped. The solenoid valve must not be energized, and the thread terminal can be tightened to solve the problem.
        • b. The solenoid valve is leaking. Air leakage will result in a lack of air pressure, making it difficult to open and close the valve. The reason is that the sealing gasket is damaged or the slide valve is worn to form blow-by.
        • c. The solenoid valve coil is burnt out. If the solenoid valve coil is burned out, the wiring of the solenoid valve can be removed and measured with a multimeter. If it is open, the solenoid valve coil is burned out.
        • d. The solenoid valve is stuck. The cooperation gap between the slide valve sleeve of the solenoid valve and the valve core is very small, and it is usually installed as a single piece. When mechanical impurities are brought in or there is too little lubricating oil, it is easy to get stuck.

        Disposal method: Use a steel wire to poke into the small hole in the head to make it rebound. The complete solution is to remove the solenoid valve, take out the valve core and valve core sleeve, and clean, so that the valve core moves sensitively in the valve sleeve. When disassembling, pay attention to the installation sequence of the components and the orientation of the external wiring, so that the reinstallation and wiring are correct. Also check whether the oil spray hole of the lubricator is blocked and whether the lubricating oil is satisfactory.

        08 The last but not the least: Compressed Air Pressure Regulating Valve – Regulator

        Regulate-Air-Compressor through the regulating valve When you operate an air compressor, the success of your project depends largely on the pressure of the air itself. To get the proper pressure for each application, you need to make sure that the settings are correct. In order to make these adjustments and make sure that you have indeed made the correct settings, there is a function called the air compressor pressure regulating valve.

        One of the most important components of an air compressor is the pressure regulator, which controls the air flow through the system. Without this type of control function, the pressure and intensity of the air flowing from the compressor tank into the pneumatic tool cannot be adjusted. The regulator protects each tool from too high or too low power, thereby helping to ensure the quality of pneumatic applications.

        Why adjust the air compressor?

        Air pressure regulators are important because different types of pneumatic tools require different pressure levels. If you try to power a slow-moving tool with the same pressure required for fast-moving operations, you may overwhelm the tool. If you do the opposite, the latter operation may produce plain results.

        Air-Compressor Pressure Regulator Vavlejpg

        When you adjust the air compressor, you can reduce the energy required to run pneumatic operations. Without the function of a pressure regulator, you may consume a lot of energy in each working day to meet peak demand, even if only a small part of the application requires so much energy. Essentially, there are three reasons to adjust your air compressor: to properly service your pneumatic tools, simplify applications, and save energy.

        Chengdu Pudding Mechatronic Co., CPMC is one of the main online distributors for all kinds of air compressors, the related spare parts such as valves as mentioned above, the filtration products, air treatment products and the wood working tools of blades. Our network ensures us to have a great selection of quality products and better prices. If you are looking for the right distributor supplier in China for your import, please feel free and never hesitate to contact us. Learn more about Chengdu Pudding Mechatronic Co. CPMC.

        If you are looking for genuine valves for your air compressors, feel free to submit the “RFQ” form below, CPMC service team will provide solution soon.

          Full Name

          City

          Phone

          Company Name

          Detailed Shipping Add

          Quick RFQ, Pls provide P/N, compressors name plate, etc.

          Please attach 1 file up to 2MB if you have.

          Please Answer the Question:
